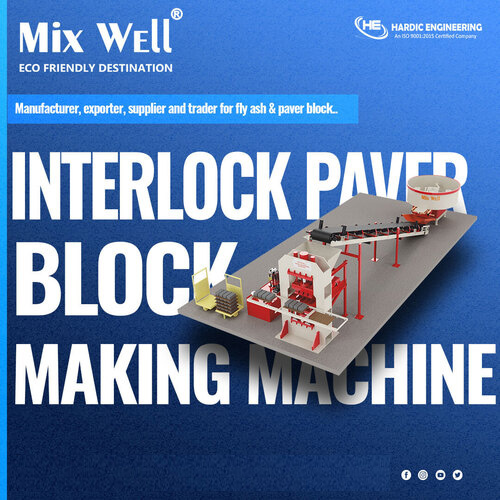

INTERLOCK BLOCK MAKING MACHINE

INTERLOCK BLOCK MAKING MACHINE
INTERLOCK BLOCK MAKING MACHINE
Product Description

INTERLOCK BLOCK MAKING MACHINE

We are Manufacturer, Supplier of Fully Automatic Fly Ash Brick Making Machine (FAM-1800). This machine has an output of 10 Bricks at one time. Engineered to perfection, the Fully Automatic Fly Ash Brick Making Machine (FAM-1800). comprises of sturdy vibrators, conveyors, pan mixers, etc. This model of Fully Automatic Fly Ash Brick Making Machine (FAM-222) has a production capacity of 14400 Bricks per shift

Technical Specification Of Brick Plant

Sr. No

Particulars

FAM-1800

1 Mixer Type Pan Mixer
2 Mixer Capacity 400 kgsX 2 NOS
3 Pan Mixer Motor 7.5 HP X 2  = 15 HP / 11.18 KW
4 Pan Mixer Gear Box HELICAL TYPE Gear Box
5 Mixer Speed 24-28 RPM
6 Mixing Arms 2 Nos. per Mixer
7 Crushing Rollers 2 Nos. per Mixer
8 Pan Mixer Feeding Manual / Automatic Feeding Available as Optional
9 Pan Mixer Gate Manual / Hydraulic Gate Available as Optional
10 Belt Conveyor Width 500 mm
11 Belt Conveyor Power 2 HP / 1.5 KW
12 Belt Conveyor Feeding Capacity 6 MT / Hour
13 Bricks Press Type Automatic Hydraulic Bricks Press with HIGH VIBRATION  Technology
14 Bricks Press Body Heavy Duty  Window type Body Fabricated from PIPE
15 Bricks Press Capacity 1800 -1900 Bricks/Hour
16 Bricks Press Tonnage 70 MT Max
17 Pressing Cylinder Bore Dia 125 mm
18 Bricks per Stroke 10 Bricks
19 Bricks Size(mm) 230 (L) X 110 (W) X 75 (H) Size Option Available
20 Hydraulic Motor 10 HP / 7.5 KW
21 Trolley Feeder Motor 2 HP / 1.5 KW


23 Hyd. Oil Tank Capacity 320 ltrs
24 Hydraulic Valves YUKEN Make / 24 DC
25 High-Pressure Pump YUKEN Make GEAR Pump
26 High Flow Pump YUKEN Make GEAR Pump
27 VIBRATOR MOTOR 7.5 HP / 5.6 KW
28 Oil Cooling Water Cooling
29 Control Panel P L C Based Control Panel
30 Pallet Feeding Automatic
31 Pallet Size 550X 550 X 19 mm
                     Total Power 38.5 HP / 28.70 KW
LATEST GERMAN TECHNOLOGY HYDRAULIC + VIBRATION TYPE
FOUR IN ONE MODEL LIKE BRICK + PAVER BLOCK + SOLID BLOCK + HOLOLOW BLOCK

Brick & Block Production Capacity With Sizes

Sr No

Particulars


Production Capacity

Pcs / Hr

Sizes

Pcs/ Mould

1

FLY ASH BRICK

230 X110 X75 MM

10

1800

2

FLY ASH BRICK

250 X125X75 MM

8

1440

3

I SHAPE PAVER BLOCK

200 X 165 X 60 MM

8

1440

4

SOLID CONCRETE BLOCK

390 X 190 X 190 MM

4

720

5

HOLLOW CONCRETE BLOCK

390 X 190 X 190 MM

4

720
